Example System #3

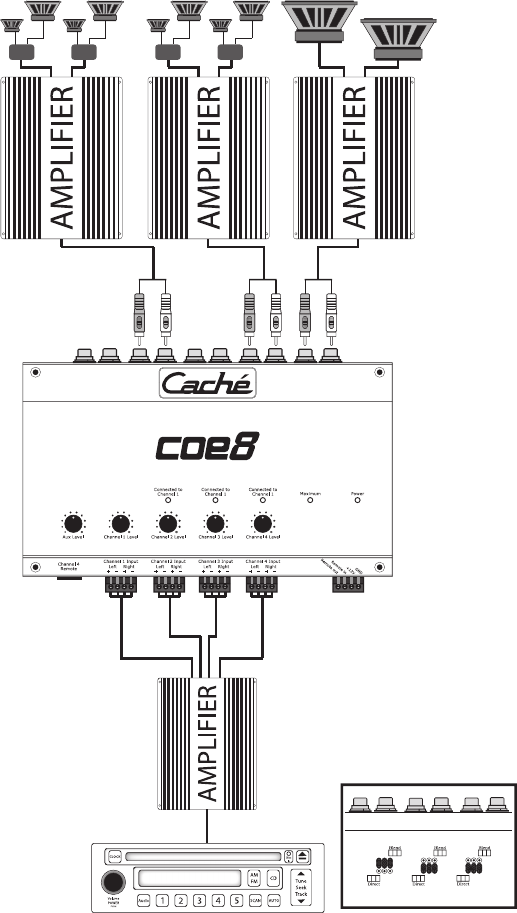

coe8 conguration for an active 2 way front, plus rear input

system using the blend mode on channel 2.

Jumper Position

Front Tweeter

Input

Blended Output

Front M id

Input

Subw oofer

Input

Rear

Full Range

Input

Factory Installed

Amplifier

Data Bus

Cable

Crossover

Front High/M id Speakers Rear High/M id Speakers Subw oofers

CHANNEL 2 IN BLEND MODE

CHANNEL 3 & 4 IN DIRECT MODE

1 2 3 4 5 6 7 8 9 10 11 12
